| 구조: | 볼, 전체 포트, 차단, 정지 | 재료: | 스테인레스 스틸, 황동, 플라스틱, WCB, PVC |
|---|---|---|---|
| 힘: | 수동, 유압, 공압, 전기, 전동 | 압력: | 중압, 저압, 고압, 3000PSI, 200psi/PN16 |
| 미디어의 온도: | 상온,중온,고온,기름,저온 | 메디아: | 물, 기름, 가스, 공기, 액체 |
| 포트 크기: | 1/2"-4",1/8" 1/4" 3/8" 1/2",1/2in-8in,1/2'' ~ 2'',1/4& | 어플리케이션: | 일반, 가정용, 관개, SGS, 산업용 |
| 표준 또는 비표준: | 기준 | 제품명: | 유압 볼 밸브, 도매 전문 플라스틱 PVC/UPVC 볼 밸브, 새로운 금형 ppr 피팅 이중 유니온 플라스틱 볼 밸브, UPVC 수동 볼 밸브, UPVC 트루 유니온 볼 밸브 |
| 본체 재질: | 황동, 스테인레스 스틸 316, PVC/upvc, 304, 니켈 도금 황동 | 크기: | DN20,1/4"~1/2",DN15~100,1/8"~4",DN15~DN50 |
| 기준: | DIN, BS, ASTM, ANSI, DIN/JIS/ANSI /BS/CNS | 색상: | 회색, 흰색, 파란색, 고객의 요청, 황동 색상 |
| 작동 압력: | 3000PSI,0-10바,30bar/435psi,높음,0-16bar | 연결: | 스레드 BSP NPT, 플랜지 끝, 암나사/OD 크기, 스레드, 암 |
| 용법: | 물 흐름 제어, Kitz 유압 ss bsp 스레드 볼 밸브 가격, 오일, 식품, 가스 | 씰 재질: | EPDM, PTFE, FPM, 실리콘, VITON |
| 표면 처리: | 광택, 산세, 자연 황동 색상 | ||
| 강조하다: | API 6D dual ball valve,fire-safe double block valve,oil and gas pipeline valve |
||

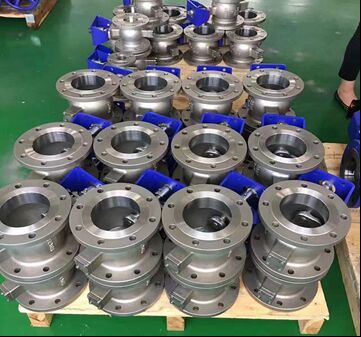

Our dual ball valve represents a significant advancement in critical flow control technology, engineered specifically for the demanding requirements of the oil, gas, petrochemical, and refining industries. This robust dual ball valve features a unique trunnion-mounted, double-seal design within a three-piece body, providing superior performance and safety in high-pressure pipeline systems, making it an ideal choice for facilities in the Middle East and global markets.
The core design of this dual ball valve ensures maximum reliability. Its primary features include a double block and bleed (DBB) capability for safe isolation and cavity relief, essential for maintenance and safety protocols. The valve incorporates a fire-safe design certified to API 607, preventing catastrophic failure in emergency scenarios. Additional safety features like anti-blowout stems, an anti-static device, and a self-relieving cavity further enhance operational integrity. For environmental compliance, fugitive emission testing is available as an option. Constructed to API 6D standards, it guarantees durable service under extreme conditions.
| Parameter | Specification |
|---|---|
| Design Standard | API 6D |
| Size Range | 1/2" to 16" |
| Pressure Class | Class 150 to 2500 |
| End Connections | RF, RTJ, FF, BW (ASME B16.5 / B16.25) |
| Body Materials | Carbon Steel, Stainless Steel, Duplex, LTCS, Inconel, Monel, Alloy Steel, Al-Bronze |
| Face-to-Face | ASME B16.10 |
| Testing Standard | API 598 |
| Operation | Manual (Gear Operated available) |
A: This dual ball valve is designed and tested in accordance with API 607 fire-safe standards. Its special seat and seal materials provide a secondary metal-to-metal seal in the event of a fire, maintaining valve integrity and preventing fluid escalation.
A: The dual ball design allows each seat to independently block upstream and downstream pressure. The cavity between the seats can be safely depressurized (bled) through a dedicated port, verifying the seal integrity and enabling safe maintenance.
A: Yes, when specified with suitable materials like Duplex stainless steel or special alloys, this dual ball valve can be configured to handle sour (H2S) environments as per NACE MR0175/ISO 15156 requirements, common in Middle Eastern oil fields.
A: It ensures electrical continuity between the ball, stem, and valve body, preventing the buildup of static electricity caused by fluid flow, which is a critical safety feature in flammable hydrocarbon services.
